Manual universal programmer
Features
- Designed with high programming speed architecture, Band Width is fast than 1.6GB/sec

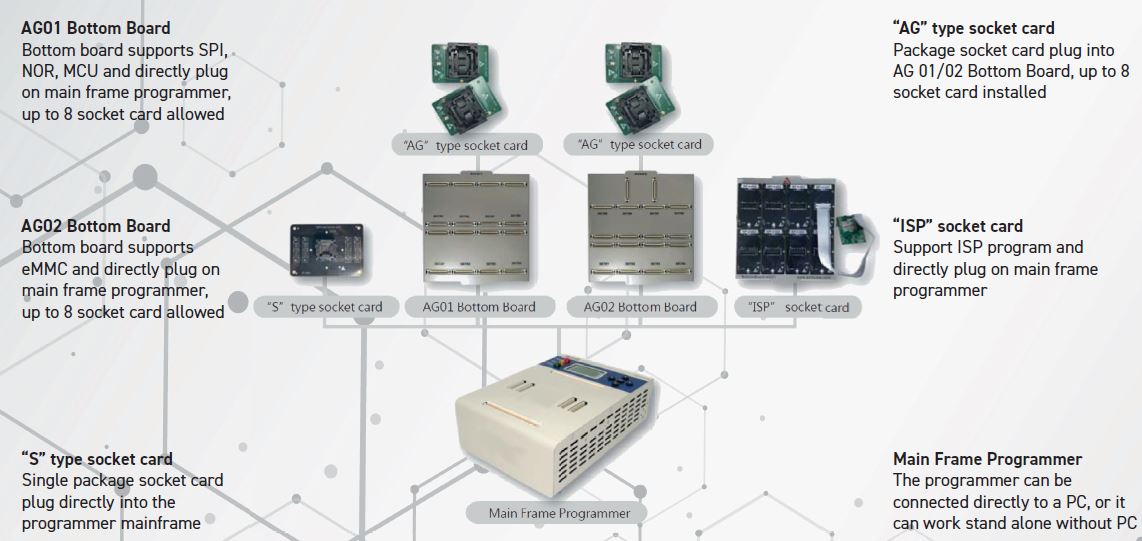

- Flexible Bottom Board embedded, supports Memory and MCU devices by Gang 8
- Universal program platform, support Nor/Nand/EPROM/EEPROM/eMMC/MCU/PLD/CPLD/FPGA….
- Support PC Remote and Standalone operation mode, easy to engineer test and mass production
- High performance Serial Code Program and friendly Project Management Log and Statistics Report
- Enhanced Image Builder for image fi le buildup included ECC, bad block management
- Support customized ISP program
Device support
- EPROM, EEPROM, NOR, NAND, MoviNAND, iNAND, eMMC, eSD, GBNAND, SD, MMC, OneNAND, PLD, CPLD, FPGA
NAND Bad Block Handling
- Skip=Block technique included
- Add-on package of manufacturer approved NAND Flash bad block handling methods available
Supports All Popular Programming Function
- Program, Read, Verify, Blank Check, Illegal Bit Check, Erase, Secure, Pin Continually
Optional System General Software
- NAND Bad Block
- Schemes Serial Number Server
- Data Mapper
- Version Control
Specifications
Humidity
- Operating: up to 70% non-condensing
- Storage: up to 80% non-condensing
Computer Requirements
- Operating System: Win XP, Win7, Win10
- SD Card slot (used for project card, optional)
- Network interface
- USB interface
- CD ROM Drive
- Serial or USB mouse
Standards Components
- SG8000 main unit
- AC power cord
- USB2.0 cable
- Ethernet cable
- Driver CD
- User manual
Communication Interface
- RJ45 connector
- USB connector
Electrical Requirements
- Operating Voltage: 110 to 240 VAC
- Power Consumption: 37.5 watts
- Frequency Range: 50 to 60 Hz
Physical Specifications
- Width: 16.0cm x Depth: 22.6cm x Height: 6.9cm
- Weight: 2kgs
Environmental
- Normal offi ce environment/power
Temperature
- Operating: 0° to +50°C
- Transportation: -4° to +70°C
- Storage: 0° to 70°
Service
- One year warranty
Software preview
