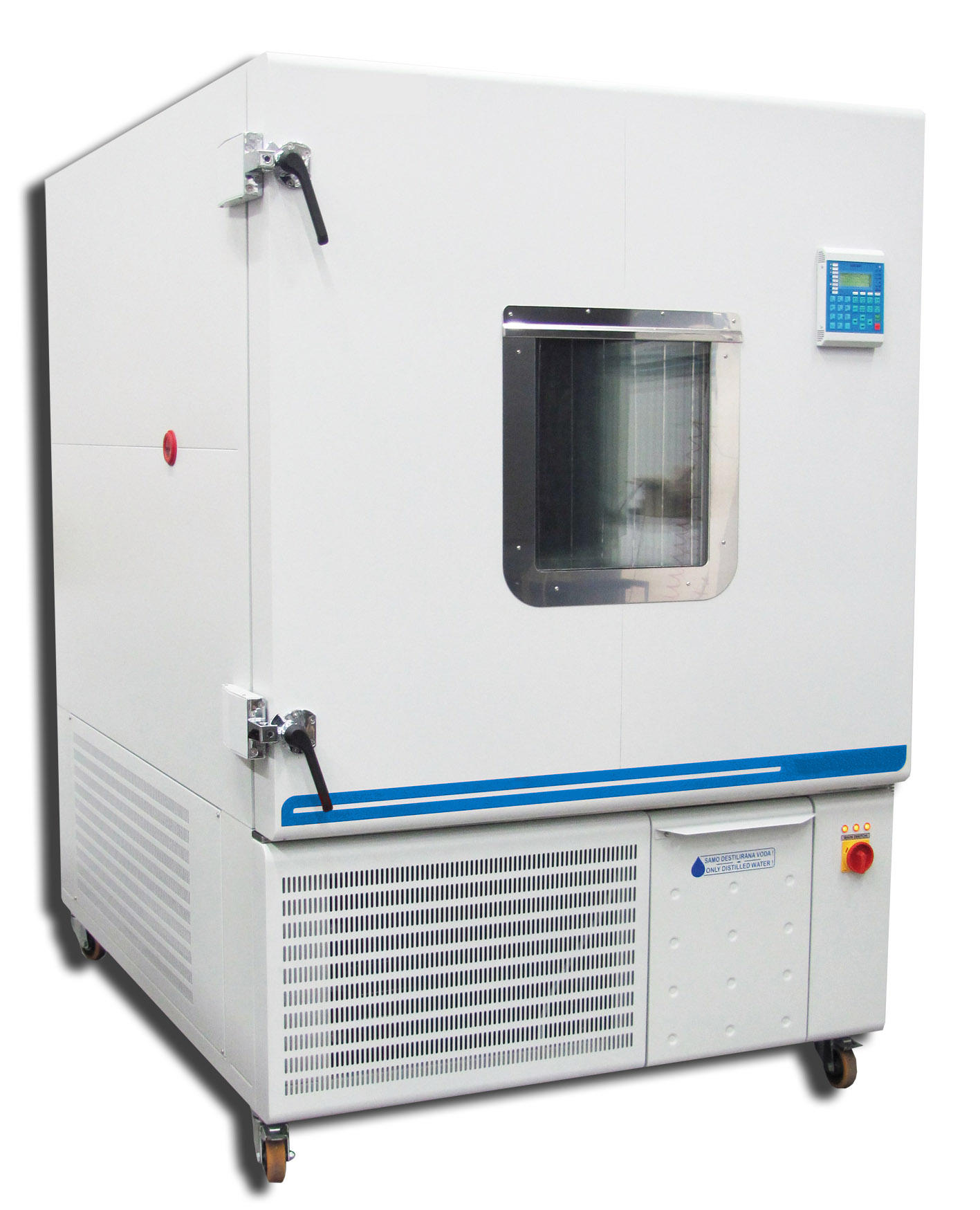

Chambre thermique -40°C à +180°C
Temperature chamber -40°C to +180°C
Six volumes available : 68, 190,340, 500 or 1000 Liters
| Volume (L) | 68 Liters | 190 Liters | |
| External dimensions (WxHxD) (mm) | 650 x 1233 x 796 | 834 x 1675 x 930 | |
| Internal dimensions(WxHxD) (mm) | 410 x 475 x 350 | 600 x 610 x 510 | |
| Temperature range (°C) | -40 °C up to 180 °C | ||
| External material | Powder coated galvanized steel (RAL-7035) | ||
| Internal material | Fully stainless steel chamber with rounded corners | ||
| Forced convection | Fan with speed control | ||
| Display resolution (°C) | 0,1 °C | ||
Set resolution (°C) | 0,1 °C | ||
| Temperature stability | ±0,4°C at -40°C ±0,08 °C at 50 °C ±0,1 °C at 180 °C | ||
| Temperature uniformity | ±1,5°C at -40°C ±0,3 °C at 50 °C ±0,3 °C at 90 °C ±1,5 °C at 180 °C | ||
| Heat up rate (°C/min) | 4,2 °C/min | 1,7 °C /min | |
| Cool down rate (°C/min) | 2,0 °C/min | 3,2 °C/min | |
| Temperature control | PID | ||
| Access port (Ømm) | Ø40mm as standard, Ø50, Ø90 mm as accessory | ||
| Interface | Interface RS-232 (USB, Ethernet in option) | ||
| Window | Observation window with illumination (option) | ||
| Software | Monitoring and history software (option) | ||
| Puissance (W) | 1 700 W | 2 600 W | |
| Volume (L) | 340 Liters | 500 Liters | 1 000 Liters |
| External dimensions (WxHxD) (mm) | 835 x 1895 x 1115 | 1035 x 1810 x 1270 | 1235 x 1930 x 1495 |
| Internal dimensions(WxHxD) (mm) | 600 x 830 x 685 | 800 x 800 x 800 | 1000 x 1000 x 1000 |
| Temperature range (°C) | -40 °C up to 180 °C | ||
| External material | Powder coated galvanized steel (RAL-7035) | ||
| Internal material | Fully stainless steel chamber with rounded corners | ||
| Forced convection | Fan with speed control | ||
| Display resolution (°C) | 0,1 °C | ||
Set resolution (°C) | 0,1 °C | ||
| Temperature stability | ±0,5°C at -40°C ±0,06 °C at 50 °C ±0,1 °C at 90 °C ±0,1 °C at 180 °C | ||
| Temperature uniformity | ±0,5°C at -40°C ±0,3 °C at 50 °C ±0,4 °C at 90 °C ±1,0 °C at 180 °C | ||
| Heat up rate (°C/min) | 2,4 °C/min | 3 °C/min | 3 °C /min |
| Cool down rate (°C/min) | 2,1 °C/min | 1,2 °C/min | 1,8 °C/min |
| Temperature control | PID | ||
| Access port (Ømm) | Ø40mm as standard, Ø50, Ø90 mm as accessory | ||
| Interface | Interface RS-232 (USB, Ethernet in option) | ||
| Hublot | Observation window with illumination (option) | ||
| Software | Monitoring and history software (option) | ||
| Wattage (W) | 2 600 W | 8 000 W | 9 000 W |
